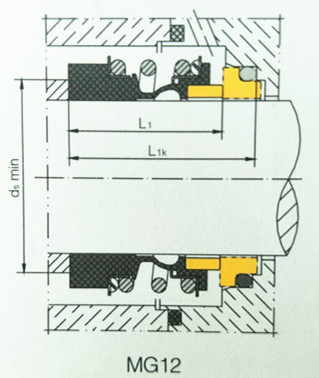

109 Series-MG12 water mechanical seal

Temperature: -20℃~140℃
Pressure: ≤1.6Mpa
Speeds: ≤ 10m/sec
Rotary ring: CARBON/SIC/TC
Stationary ring: CERAMIC/SIC/TC
Secondary seal: NBR/VITON/EPDM
Spring&Other parts: SUS304

Used in differend pumps,mixers and other rotating equipments which apply to oil,water and other weak corrosive solutions.
Materials should be selected according to operation condition.
