Mechanical Seal 103 Series
Pressure in the sealed chamber:¡Ü0.4Mpa
Temperature in the sealed chamber:-20¡æ~80£¨120£©¡æ
Linear velocity£º¡Ü3000r/min
|

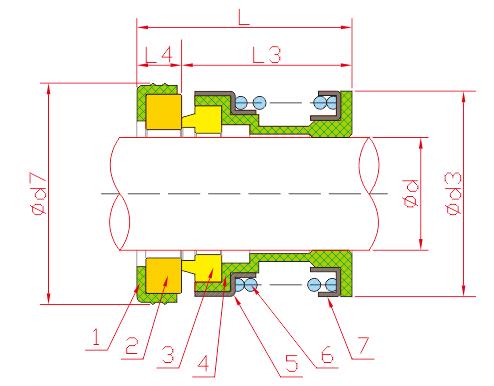

Model
|
d1£¨h6£©
|
d3(Max)
|
d7(h8)
|
L1(¡À0.5)
|
L3
|
L3A
|
L6
|
|
103-10
|
10
|
22
|
26
|
20.58
|
15
|
15.5
|
4
|
|
103-12
|
12
|
23.5
|
26
|
20.5
|
15
|
15.5
|
4
|
|
103-12
|
12
|
23.5
|
26
|
23
|
15
|
15.5
|
6.5
|
|
103-14
|
14
|
27
|
30
|
20.5
|
13.5
|
14.5
|
5
|
|
103-17
|
17
|
30
|
35
|
21
|
13.5
|
14.5
|
5
|
|
103-18
|
18
|
30
|
35
|
21
|
13.5
|
14.5
|
5
|
