FG Series water pump seal mechanical seal
Operating conditions:
Pressure: ≤ 0.6Mpa
Temperature: -30℃ ~ 200℃ (NBR)
Linear velocity: ≤10m/sec
Materials:
Rotary ring: Ceramic/ sic / tc
Spring: sus304 / sus316
bellows: : NBR/HNBR/EPDM/VITON
Stationary seat: sus304 / sus316 /brass
Cup gasket: NBR / EPDM/ VITON

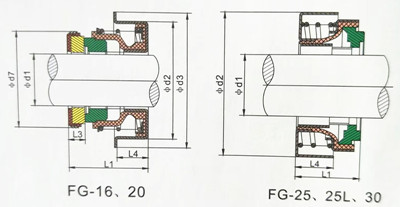

Models:
FG-15
FG-16
FG-16A
FG-20
FG-25
FG-25L
FG-30
