TB Series water pump seal mechanical seal

Operating conditions:

Pressure in the sealed chamber: ≤ 0.6Mpa
Temperature in the sealed chamber: -30℃ ~ 200℃ (NBR)
Linear velocity: ≤10m/sec
Materials:

Rotary ring: Ceramic/ sic / tc

Drive ring: brass

Spring seat: brass

Spring: sus304 / sus316

bellows: : NBR/HNBR/EPDM/VITON

Stationary ring: plastic carbon/ carbon/ sic

Cup gasket: NBR / EPDM/ VITON

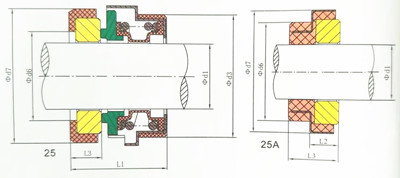

Models:

TB-5/8"

TB-25

TB-25A
