FBW serise mechanical water pump seal

Operating conditions:
Pressure in the sealed chamber: ≤ 0.6Mpa
Temperature in the sealed chamber: -30℃ ~ 200℃ (NBR)
Linear velocity: ≤15m/sec
Materials:

Rotary ring: ceramic / sic /tc

Stationary ring: carbon/ sic

secondary seal: NBR/HNBR/EPDM/VITON

Spring & other parts: sus304 / sus316

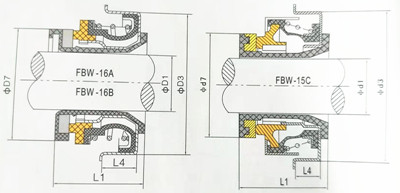

Models:

FBW-16A

FBW-16B

FBW-15C

FBW-16D
