Mechanical seal 108 series
Model Number: 108 series mechanical seal
Style: Mechanical seal
Standarsd or Nostandard: Standard
OEM: Accepted
Rotary ring: Carbon
Stationary ring: Ceramic
Secondary seal: NBR
Spring&Other parts: SUS304
Temperature: -40℃~125℃
Pressure: ≤0.5Mpa
Speeds: ≤ 5m/ sec
|

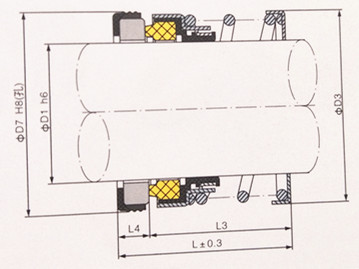

Model
|
D1
|
D3
|
D7
|
L
|
L3
|
L4
|
|
108-8(105-8)
|
8
|
15.8
|
21
|
19
|
13.5
|
5
|
|
108-9
|
9
|
20
|
21
|
20
|
15
|
5
|
|
108-10
|
10
|
20
|
21/22
|
20
|
15
|
5
|
|
108-11
|
11
|
20
|
23
|
20
|
15
|
5
|
|
108-12
|
12
|
22
|
23/24/26
|
20/21
|
15/16
|
5
|
|
108-14
|
14
|
24.5
|
25/26/28
|
21/25
|
16/20
|
5
|
|
108-15
|
15
|
26.5
|
27/28/30
|
25
|
20/19
|
5.0/6.0
|
|
108-16
|
16
|
26.5
|
27/28/30
|
25
|
20/19
|
5.0/6.0
|
|
108-17
|
17
|
32
|
33/35
|
25
|
20
|
5
|
|
108-17T
|
17
|
2
|
28
|
25
|
19.5
|
5.5
|
|
108-18
|
18
|
32
|
33
|
25
|
20
|
5
|
|
108-19
|
19
|
34
|
35
|
25
|
20
|
5
|
|
108-20
|
20
|
34
|
35/36
|
25
|
20
|
5
|
|
108-22
|
22
|
37
|
37
|
28
|
22.5/22
|
5.5/6
|
|
108-22T
|
22
|
35
|
36
|
25
|
20
|
5
|
|
108-24
|
24
|
39
|
40/41
|
32/35/37
|
24/27/29
|
8
|
|
108-25
|
25
|
39
|
40/41/41.8
|
32/35/37
|
24/27/29
|
8
|
|
108-28
|
28
|
45
|
45/46
|
35/37
|
27.5/29.5
|
8
|
|
108-30
|
30
|
45
|
45/46
|
35/37
|
27.5/29.5
|
8
|
|
108-35
|
35
|
50.5
|
50
|
37
|
28.5
|
8
|
|
108-40
|
40
|
57.5
|
58
|
40
|
31
|
8.5
|
|
108-45
|
45
|
62.5
|
63
|
40
|
31.5
|
8.5
|
|
108-50
|
50
|
71
|
70
|
45
|
35.5
|
9.5
|
|
108-55
|
55
|
75.5
|
75
|
45
|
35.5
|
9.5
|
